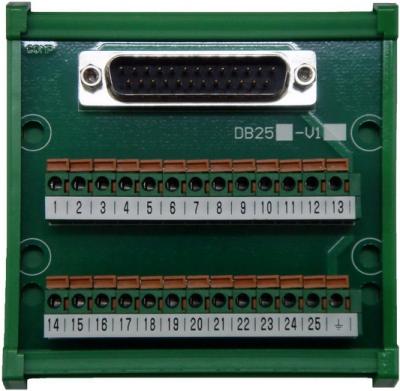

D型連接器接線轉接模組

D-SUB Connector Module
D型連接器接線轉接模組

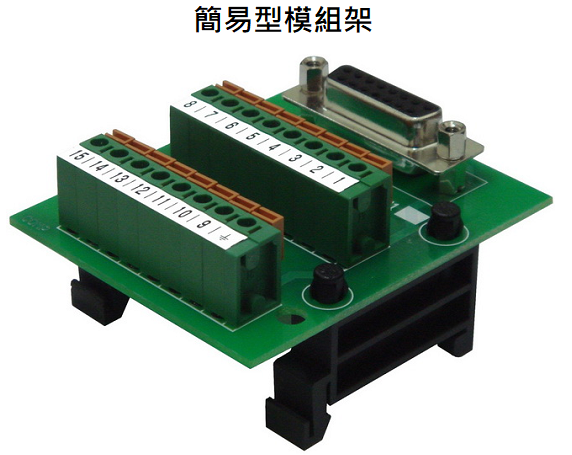

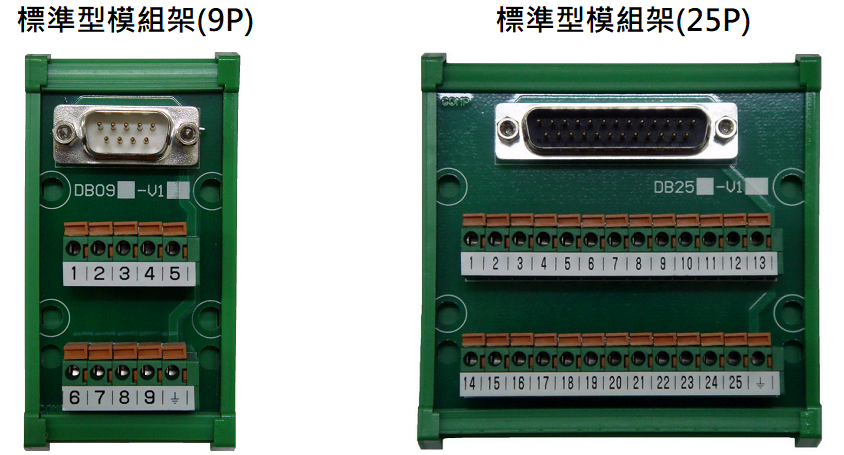

Connector Module Series are designed to be mounted on DIN track . The wire connection is based according to the wire and Screwless（spring）Clamp Connection standard. Terminals and solid wires can be inserted into the block directly without a lever for assistance. The wire can be easily removed just pressing down the clamp with a screwdriver. D-SUB connector with the various standard in 9,15,25,37 ect.

接線轉接模組系列可使用在DIN鋁軌。接線模組系列是使用在線與螺絲端子台之間的連接功能。接線模組系列採用免螺絲端子台有易拔插的方便性。圓棒端子及單芯線能直接插入，不需手把的輔助。退線時只要以一隻起子壓下即可輕易將電線取出。D型連接器提供9、15、25、37等不同腳位可供選擇。

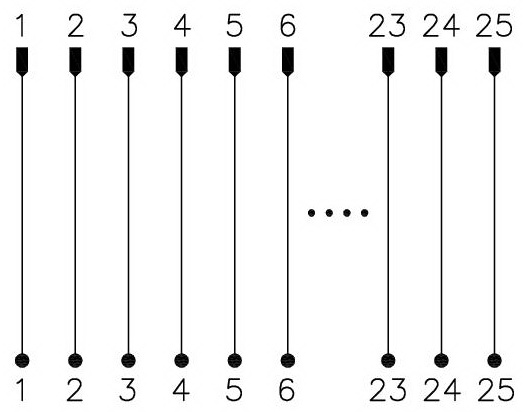

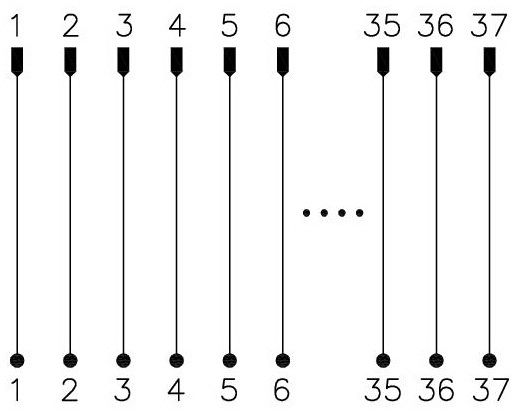

線路圖
