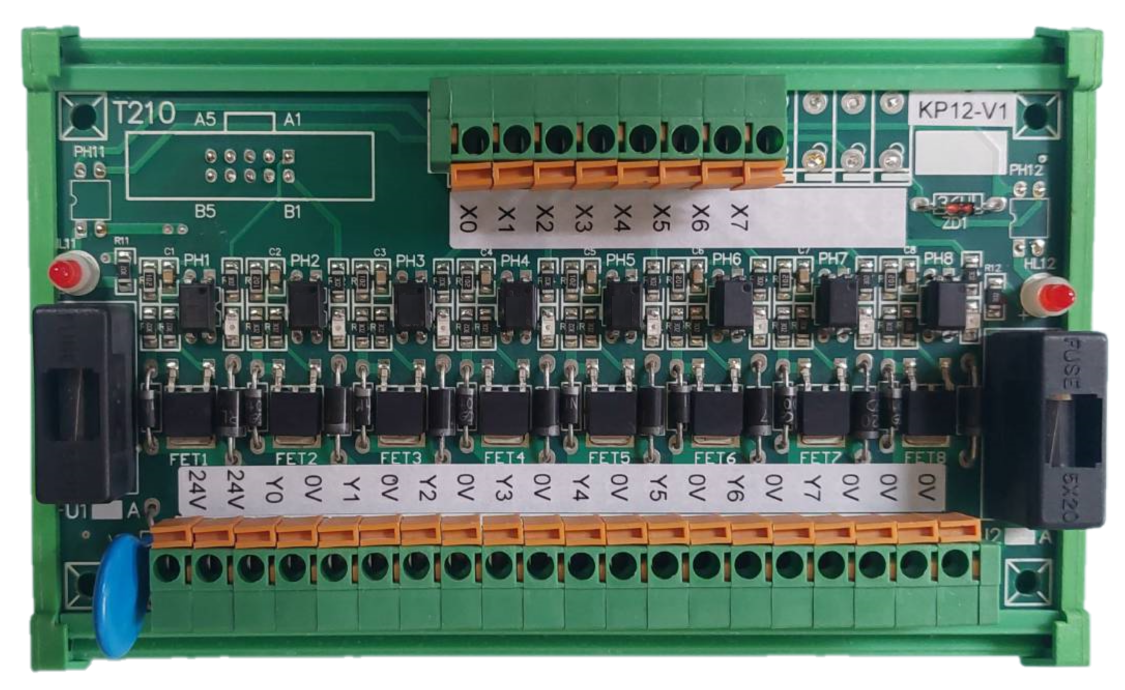

MOSFET輸出模組

MOSFET Output Module
MOSFET輸出模組

‧Provide eight groups output,each 4 groups have a 4A fuse protection.

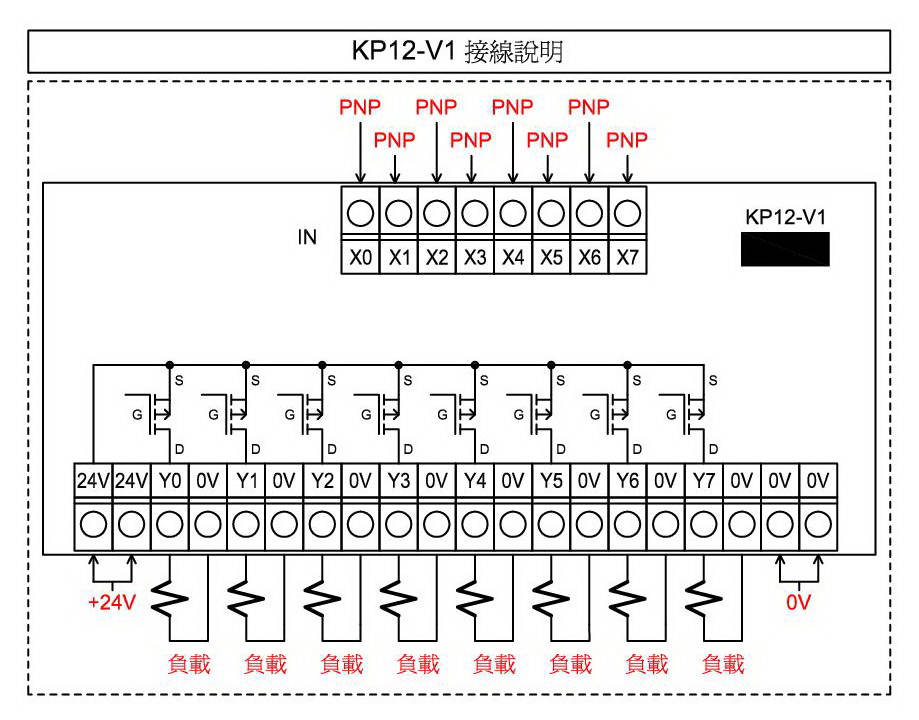

‧The load can be directly wired to the output module, which saves wiring.
‧The wire connection is based according to the wire and Screwless（spring）Clamp Connection standard. Terminals and solid wires can be inserted into the block directly without a lever for assistance. The wire can be easily removed just pressing down the clamp with a screwdriver.
‧Aluminum Rail Fixed base design, can be used in the DIN standard 35mm track.

‧提供8組輸出，每4組有一個4A保險絲(5×20)保護。
‧負載可直接配線到電路板，可省配線。
‧接線模組系列採用免螺絲端子台有易拔插的方便性。圓棒端子及單芯線能直接插入，不需手把的輔助。退線時只要以一隻起子壓下即可輕易將電線取出。
‧鋁軌固定式底座設計，可使用在DIN標準的35mm軌道。
